Netgear Orbi Mesh Setup Guide – Installation & Configuration

All you need to set up your Netgear Orbi system, is connecting the router with the modem, turning on the satellite units, and in the end configuring the Orbi mesh setup using the Orbi app or a web browser.

Therefore, this guide will provide you all the information about each stage, such as how to do the physical Orbi mesh setup, where to put satellites, how to upgrade firmware, and how to check the network. It works with both new installations that are already in use. All instructions are based on the most recent Orbi models and firmware to make sure they work with all devices and are correct.

Orbi Router Setup Guide

Getting your Orbi Router Setup installed and running doesn’t have to be complicated. Below is a step-by-step guide that covers everything from unboxing to optimization. Just what you need to get the job done right.

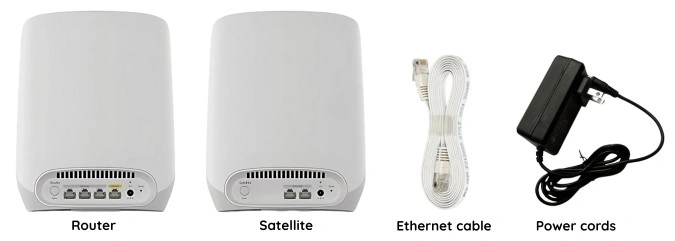

1. Unbox and Verify Everything

• Open the box and lay everything out. You should have at least:
  • One Orbi router
  • One or more satellites
  • Power cords
  • An Ethernet cable
• Check whether there are any missing parts or visible damage before starting the Orbi Router setup.

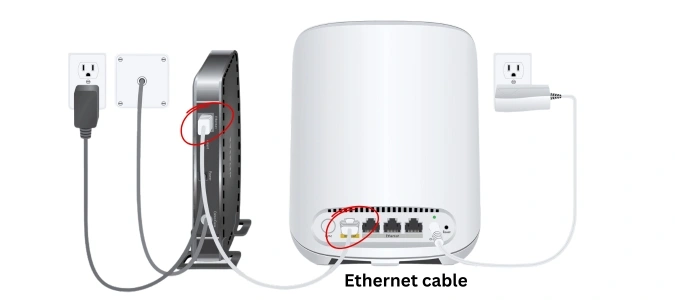

2. Connect Your Orbi Router

• Plug the ethernet cable’s one end into your modem and the other into the yellow port on your Orbi router.
• First power on your modem; let it start up for a few minutes.
• Then plug in the router and wait. The ring LED will light up—don’t worry if it changes colors at first. That’s normal.

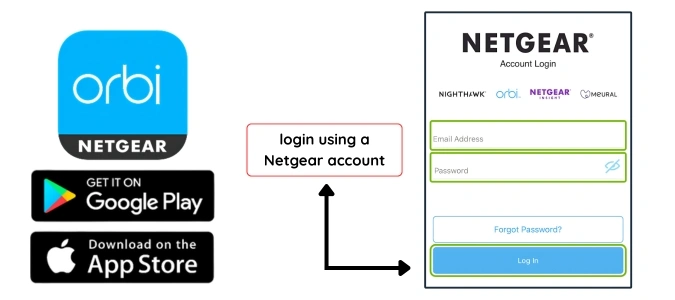

3. Install the Netgear Orbi App

• • Download the app by visiting Google Play or the App Store.
  • Launch the app and log in using a Netgear account. If you don’t have one, you can create one.

• Tap “Get Started” in the app.
• It will detect the router and confirm its connection to the modem.
• Scan the QR code on the router when prompted. This links your phone to your system and makes Orbi router setup faster.

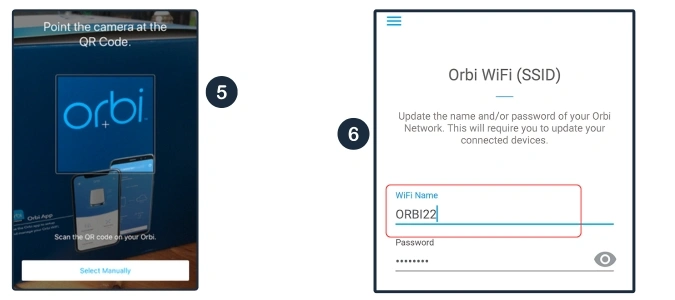

4. Name Your Wi-Fi Network

• Choose a strong password and create a Wi-Fi name (SSID).
• This information will be needed to join all your devices, so make them simple but safe.

Orbi Satellite Setup Guide

This article follows you through positioning, powering, and connect Orbi satellite to guarantee a strong, consistent communication with your primary router. Follow the steps given below for hassle free Orbi satellite setup:

1. Set Up Your Orbi Satellite

• Choose a spot halfway between your router and the area with weak Wi-Fi. You want a location that’s central but not too close to the router.
• Plug the satellite into a power outlet and wait for the LED to go solid blue. That means it’s successfully linked to the router.

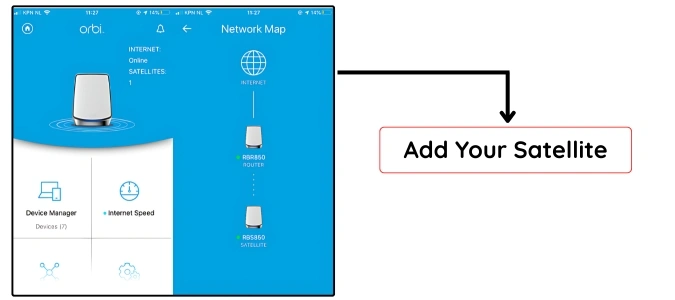

2. Add Your Satellite

• The app will scan to connect Orbi satellites nearby.
• If the signal isn’t strong, you’ll be guided to move the satellite to a better location.
• Once the LED turns blue and the app confirms a solid connection, you’re good to go.

Orbi Features and Settings

Here are some of the Orbi’s features and settings that you can make to get the most from your network and keep it efficient, secure, and reliable. Follow the tips given below to make your network worthy.

1. Update the Firmware

• If there’s an update available, you’ll get a prompt.
• Always go ahead with the update. It fixes bugs, improves performance, and keeps your network secure.
• Let the process finish before you do anything else.

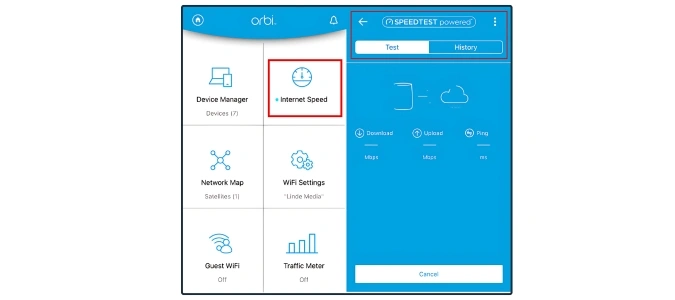

2. Run Speed and Connectivity Tests

• Use the tools in the Orbi app to test your internet connection.
• You’ll get results for both internet-to-router speed and router-to-device performance.
• If speeds seem off, the app will offer suggestions on what to adjust.

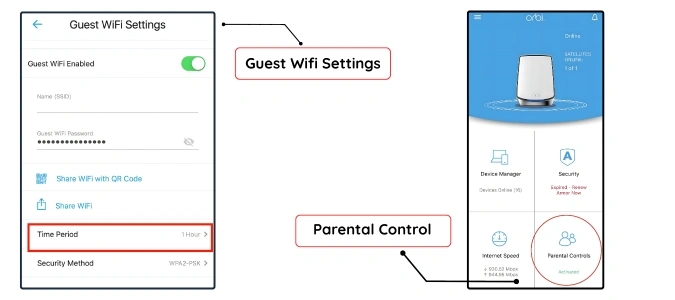

3. Explore Additional Settings

• Once everything is up and running, you can tweak more advanced settings:
  • Set up a guest network
  • Turn on parental controls
  • Monitor connected devices
  • Schedule internet pauses for specific times of day
• These features can be accessed through the app or by logging into your router at orbilogin.com

Finish Orbi Setup

Finish your Orbi Mesh setup to get fast, dependable Wi-Fi all across your home. Follow the steps given below to experience the power of a connected home with simplicity and accuracy.

1. Save Your Settings and Reboot

• It’s a good idea to save and restart the system if you have made any changes.
• A fresh reboot helps lock in all settings and clear up minor glitches.

2. Connect Your Devices

• Now you’re ready to link your phone, laptop, smart TV, or anything else to your new Wi-Fi network.
• Now enter the name and password you just generated. Most users notice faster speeds immediately.

3. Keep the Orbi App Handy

• The Netgear app isn’t just for Orbi satellite setup. You can use it later to:
  • Reboot the system remotely
  • Check for software updates
  • View connected devices
  • Get alerts if anything needs attention

Troubleshooting Orbi Setup Problems

Things can still go wrong, even with the finest devices. Here are some common issues your device might face and how to repair them if your Orbi isn’t working well.

1. Orbi Not Connecting to Internet

• First, check your modem. Make sure it’s online and stable.
• Try unplugging both the modem and router, then plug them back in (modem first).
• Still stuck? Your modem might not be compatible or needs a reset from your ISP.

2. Netgear Orbi App Not Finding Router

• Your device should be connected to the Orbi’s network only, else it won’t allow the access.
• Make sure there are no pending updates and try restarting the app.
• If that doesn’t help, reboot the router and try again.

3. Slow Speeds or Dead Zones

• Connect Orbi satellite slightly closer to the router.
• Avoid placing it near thick walls or electronics like microwaves.
• Run the speed test in the app and follow its recommendations.

4. Orbi Not Powering On

• Check if the power cable is secure and undamaged.
• Try a different outlet if needed.
• If the light stays red or amber, do a power cycle (unplug for 30 seconds, then plug back in).

5. Factory Reset

• If nothing else works, reset the Orbi unit to factory settings.
• Press and hold the reset button on the back of the router or satellite for about 10 seconds.
• Wait for the LED to flash, then start the Orbi satellite setup over using the app.
